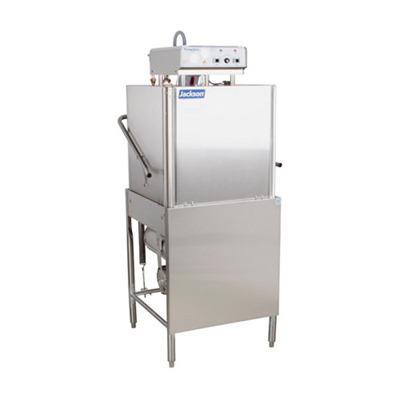

Jackson TEMPSTAR-HH Door Type Dishwasher – 53 Racks/Hr, High Temp
Brand: Jackson
Uses 1.36 gallons (5 liters) of 180˚F (82˚C)
water per rack
Total automatic (normal) cycle – 62 seconds
53 racks per hour (normal) cycle
2 HP Wash Pump Motor
Single point connections for all utilities
Field convertible from straight through to
corner and vice versa
Durable stainless steel construction
For more information about lease and rental options, please call us at (604) 906-6030 .
Sani-Sure™ feature assures proper
rinse water temperature
Multi-cycle timer (Extra Heavy,
Heavy, Medium, Normal)
Extended 15sec. high-temperature
rinse provides superior coverage
and rapid drying
20-3/4” wide X 27“ high (527mm X
686mm) opening accommodates
18” X 26“ (457mm X 660mm) sheet
pans and 60-quart mixing bowls
Auto-fill / auto-start
Door switch
Delime/manual wash switch
Low watt density electric wash
tank heater
Hi-limit thermostat and low water
protection
Vent fan control shuts fan off when
machine is idle
Adjustable bullet feet
Uses standard 20” X 20” (508 mm X
508 mm) racks
Front dress panel
Detergent/rinse additive signal
connection fuse box
Built-in 70° F (38.9° C) rise booster
heater is standard; 40° F (22.2° C) rise
booster heater is available but
must be specified at time of order
Lower counter-rotating wash arms
and upper wash arm provide
optimum spray coverage and
superior cleaning action
Self-draining stainless steel pump
Split-door design accommodates
installations with low ceiling heights
Large scrap basket
